Measuring for Angled Bay Windows

Measuring an angled bay window can sound daunting, but with our how to video and step by step guide it couldn't be easier. Below you’ll find all the information you need to measure up and ensure you get the correct information you need to order your new blinds. Save money on expensive home measure visits and measure your own windows in minutes!


We recommend watching our how to measure video guide first.

Choose Your Blind Type

With bay window blinds, the measurements you need to take differ for the type of blind you're looking to hang.

Step 1

Blind Type

First you will need to decide which type of blind you will be measuring for in your bay.

Step 2

Fixing Type & Rail Depth

Take note of your rail depth below for step 2 when measuring.

You also need to decide whether you will be using a top or a face fixing, as this will affect your allowances when measuring.

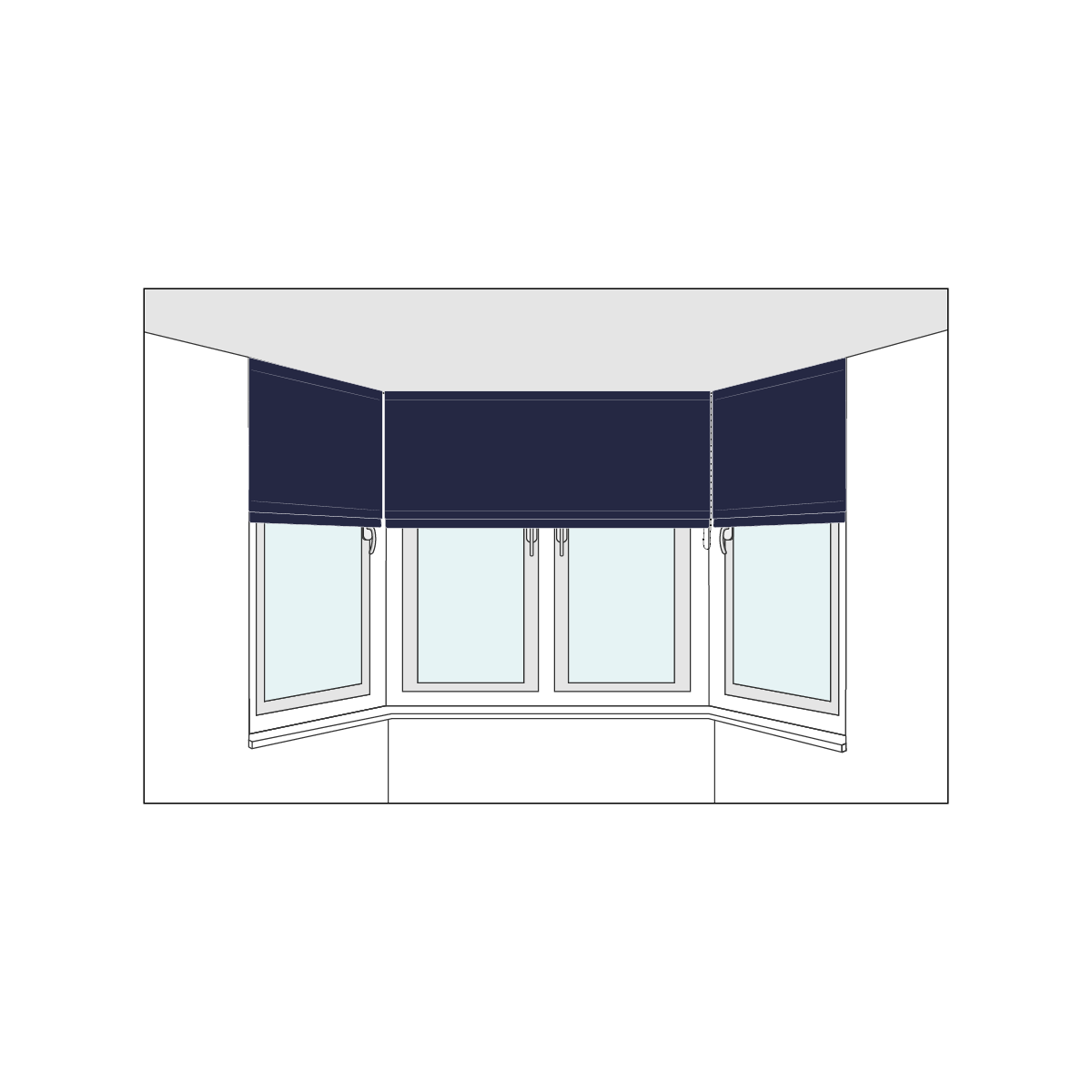

Roller Blinds

Top-fix bracket allowance is 50mm (for blinds up to 2000mm wide), and 70mm (for blinds over 2000mm).

A face fixing bracket is 60mm (for blinds up to 2000mm wide), and 80mm (for blinds over 2000mm).

Wooden Blinds

42mm for 35mm sized slats and 75mm for 50mm sized slats.



Aluminium Venetian Blinds

A 25mm aluminium venetian blinds has a rail depth of 30mm.

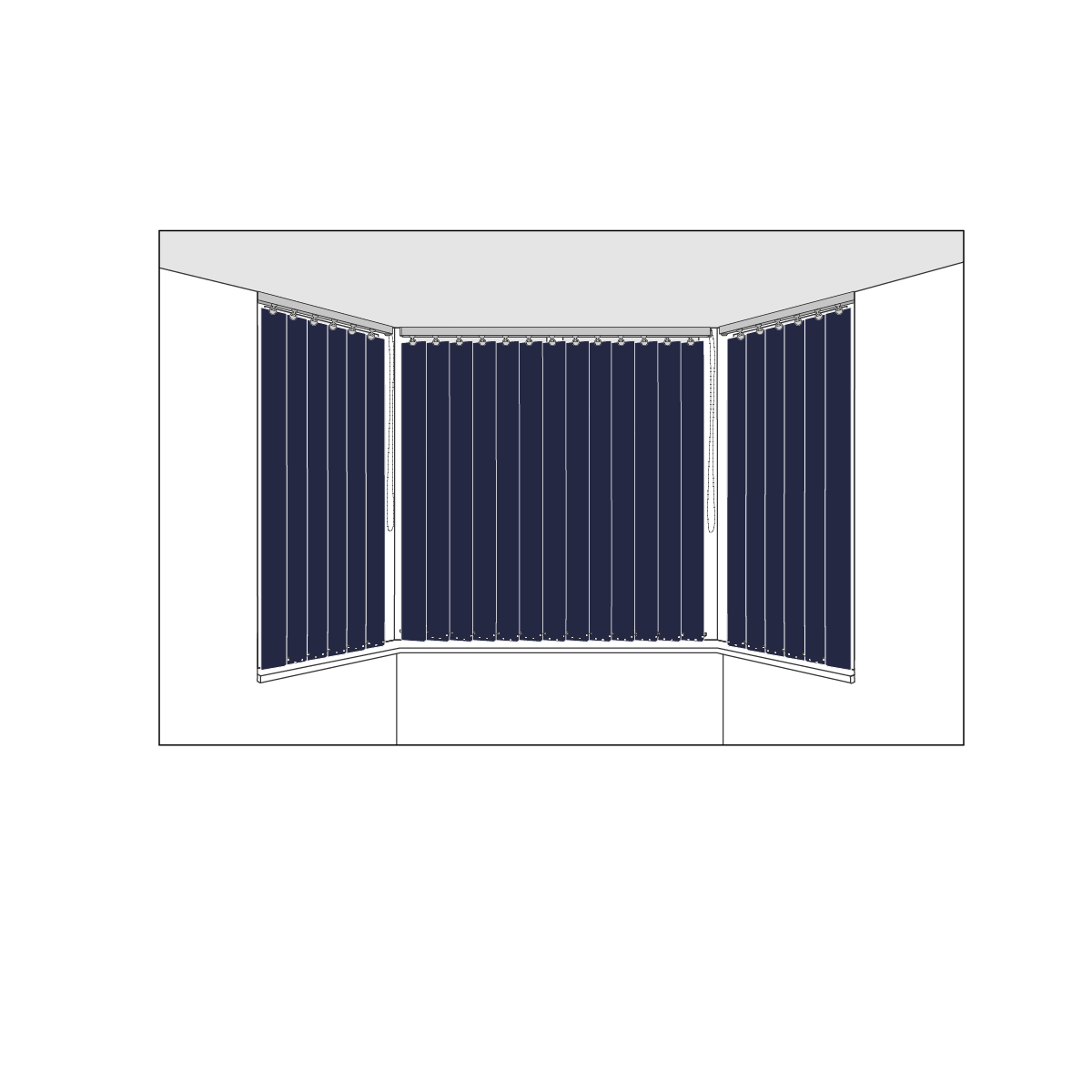

Vertical Blinds

89mm vertical blind slats have a rail depth of 70mm.

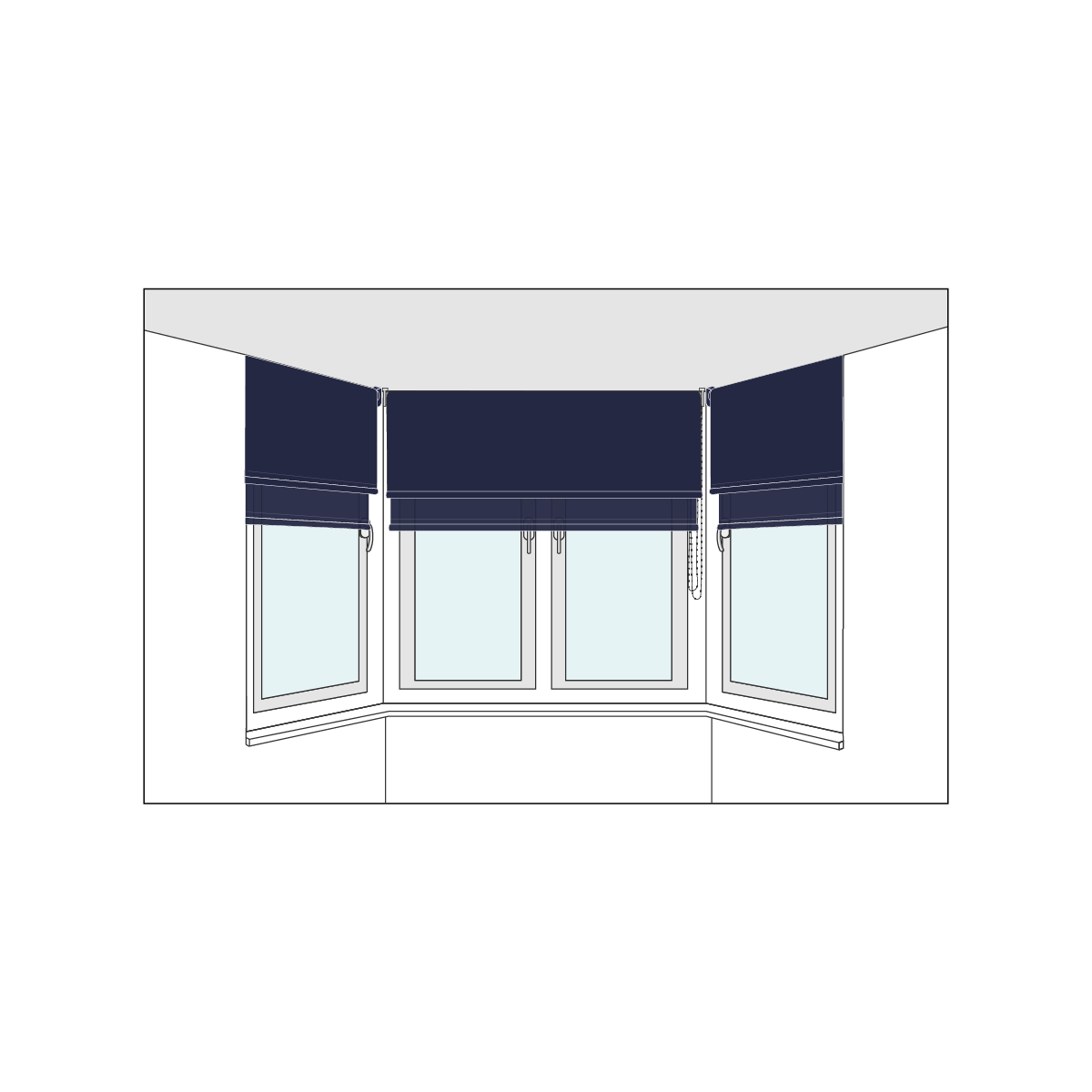

Roman Blinds

The rail depth for our roman blinds is 45mm.

Pleated Blinds

The rail depth for our pleated blinds is 35mm.

Important Note

Roller Blinds

Due to the cloth cover always being narrower then the bracket to bracket exact size, unless you have large corner window frame work, there will always be areas of glass that aren't covered fully by the blinds. This is especially noticeable if you're looking to install blackout blinds.

This applies to all roller blinds.

Measuring Your Bay Window

Find out how to measure your bay window in these 8 simple steps.

Step 1

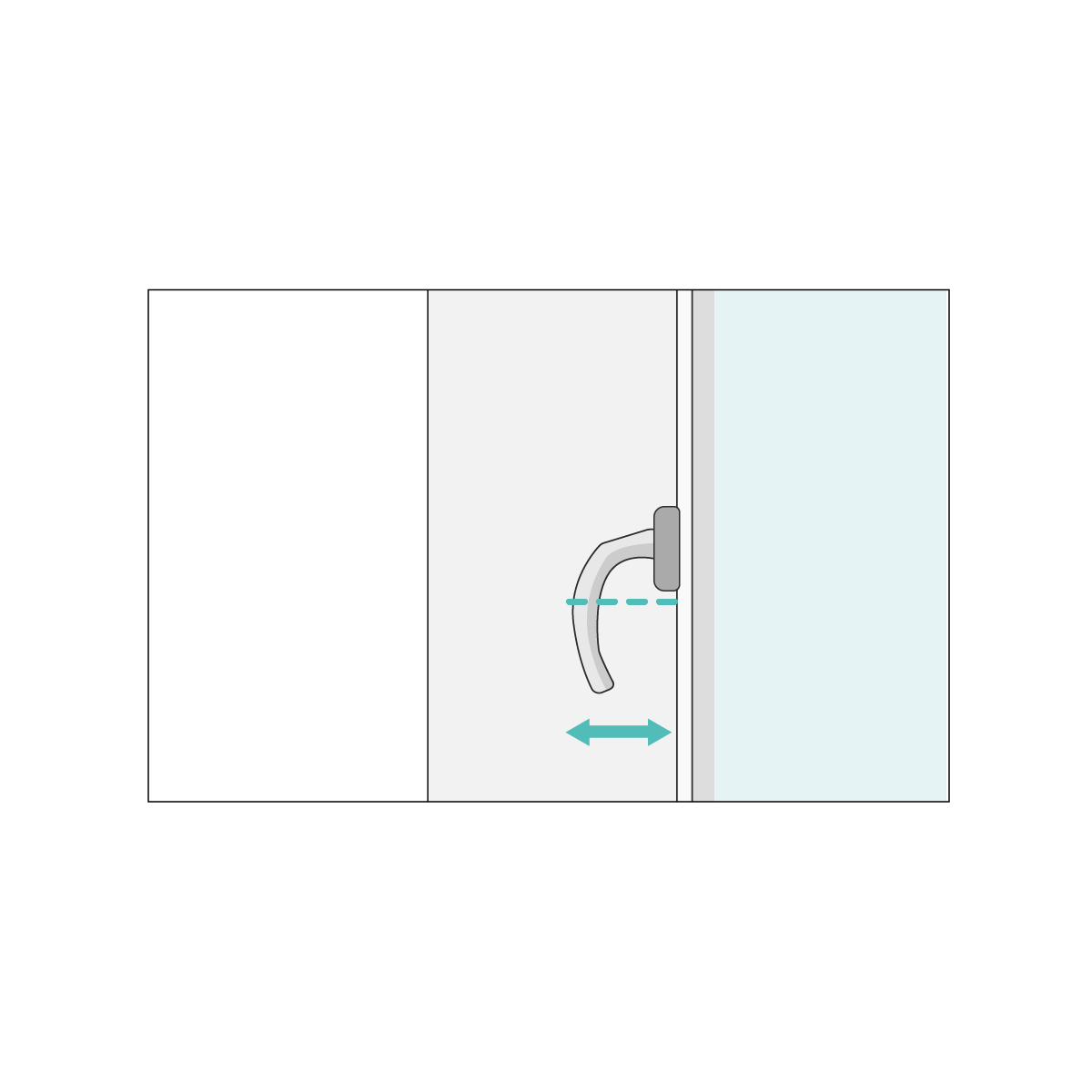

Measure the Obstruction Depth

Measure the distance from the frame of your window to the outside of any obstruction, such as handles or vents.

Step 2

Calculate Total Depth

The headrail depth will differ for the type of blind you're looking to hang. Find your headrail depth from the above measurements listed, and add this depth to the depth of any window obstructions, such as handles. This will give you your total depth.

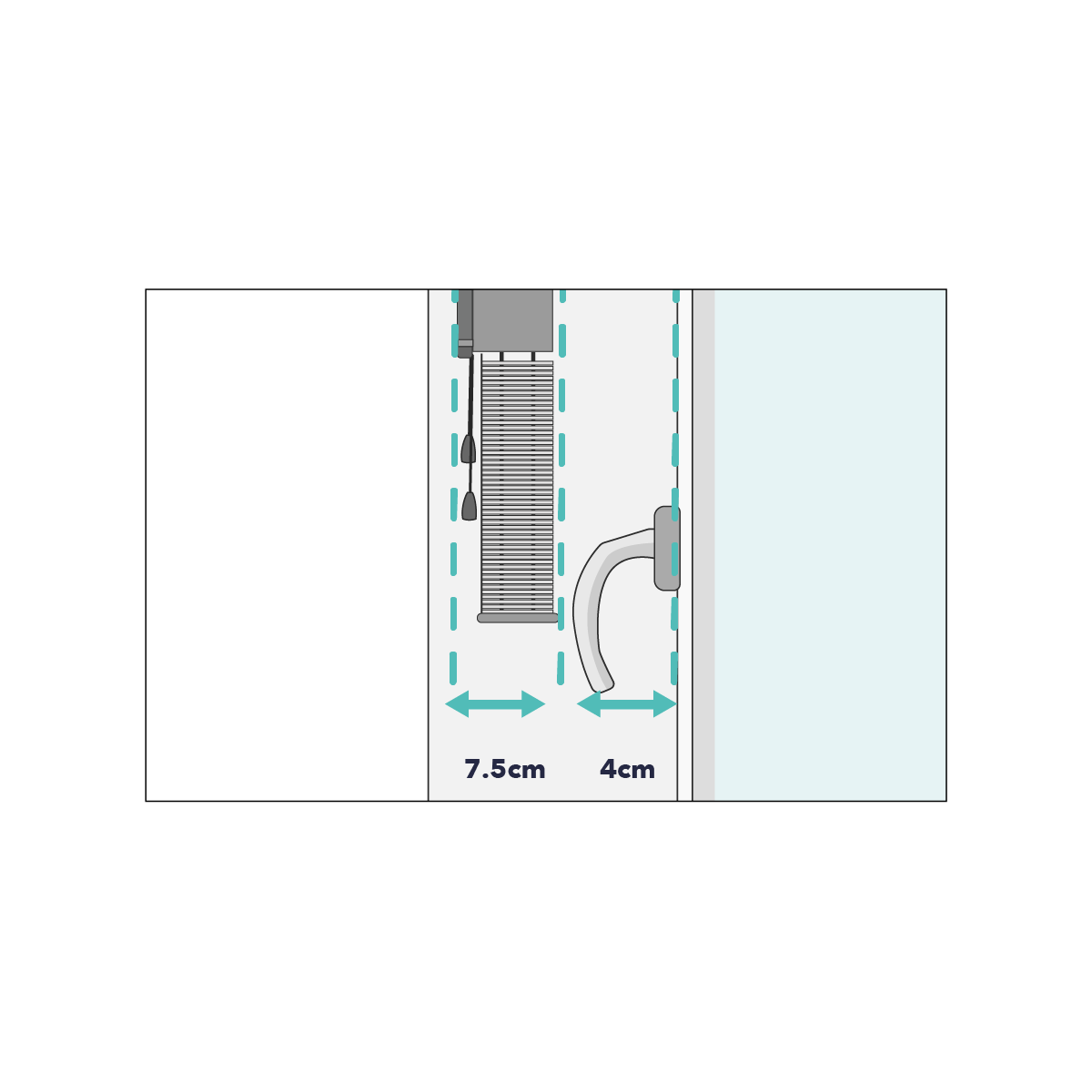

For example, if your window handle protrudes 4cm from your window frame, and you're looking to measure for Wooden blinds, your calculation would be 7.5cm + 4cm. So total depth of 11.5cm.

Step 3

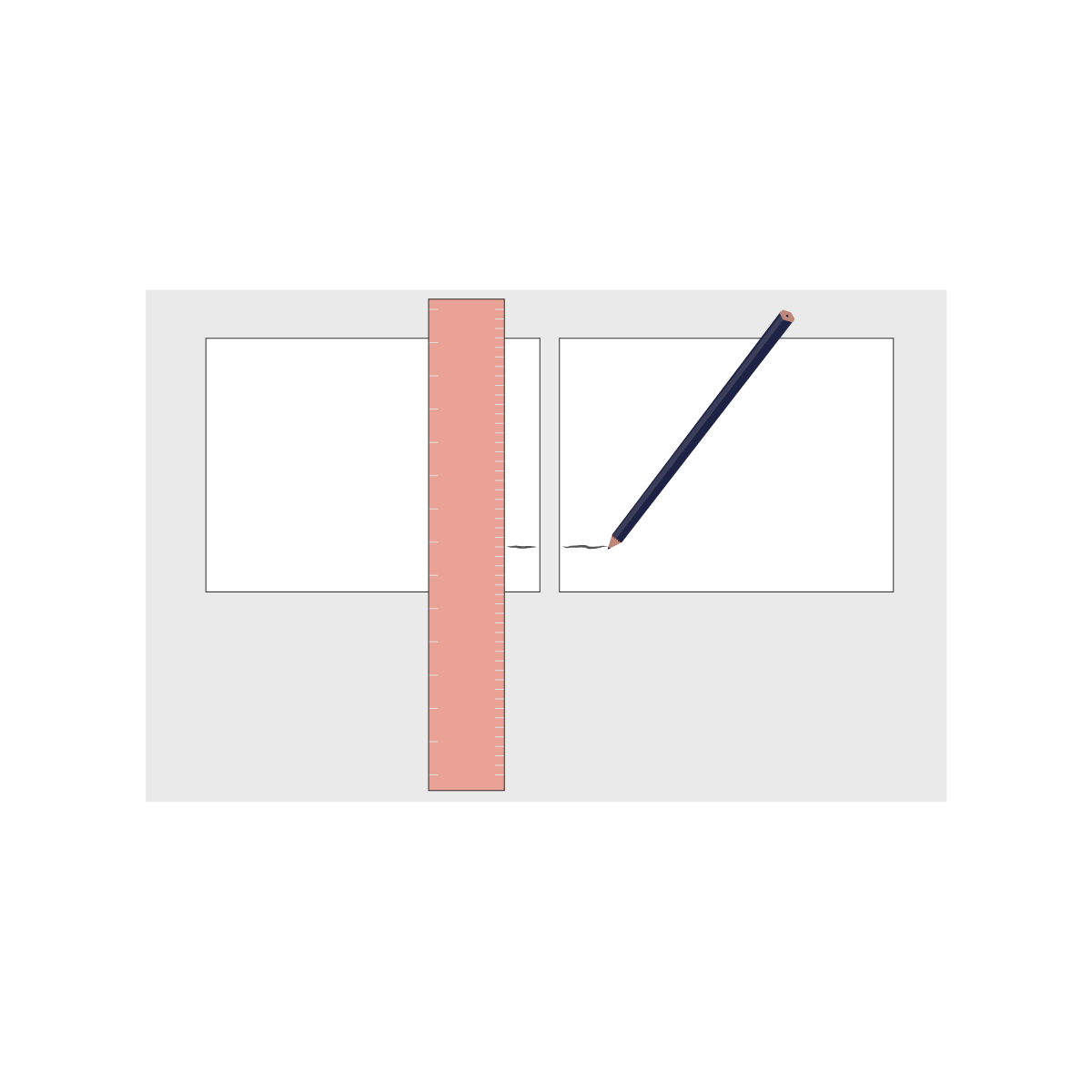

Mark your Total Depth

Place two pieces of paper edge to edge and use a ruler to mark your total depth measurement from the previous step.

Step 4

Find your Measuring Points

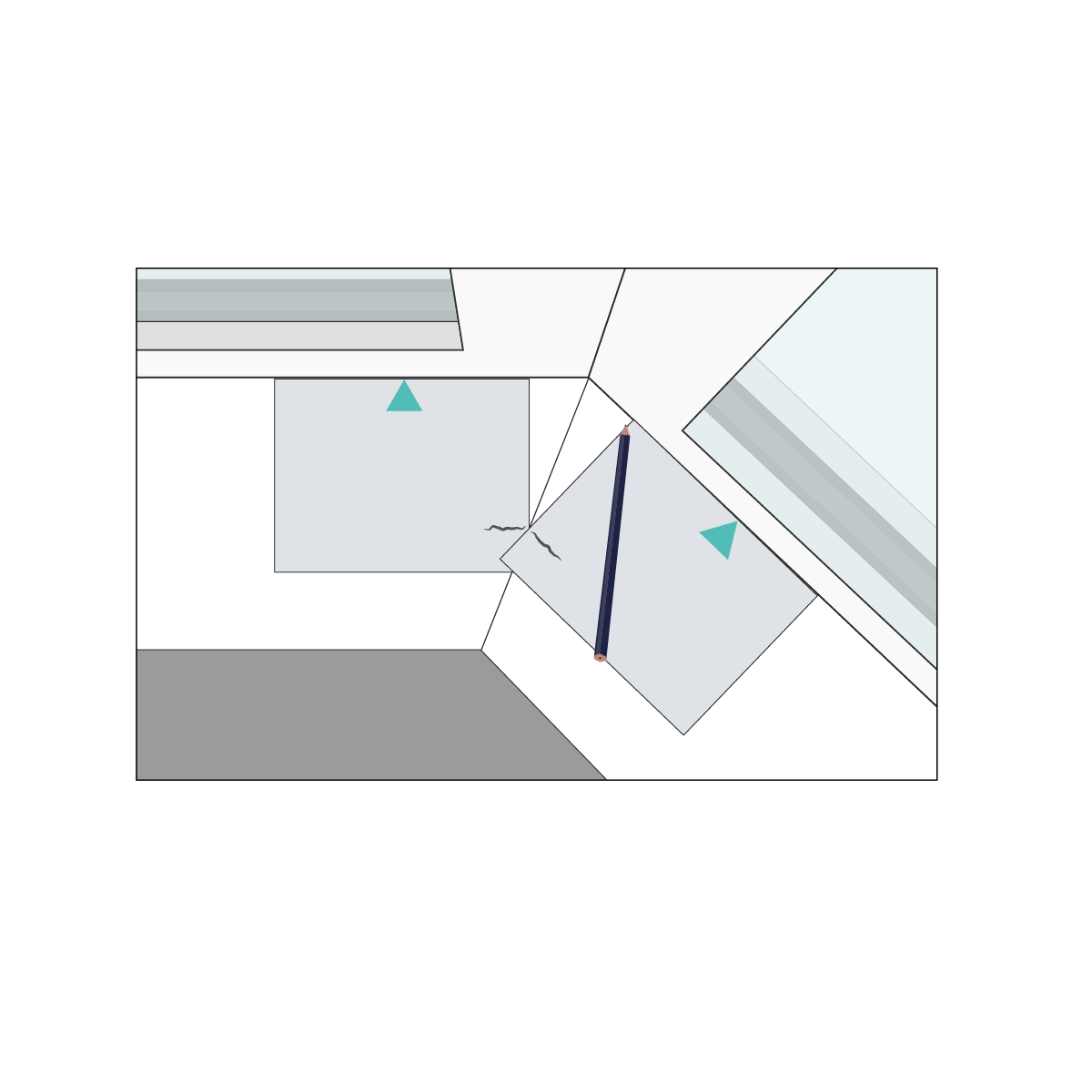

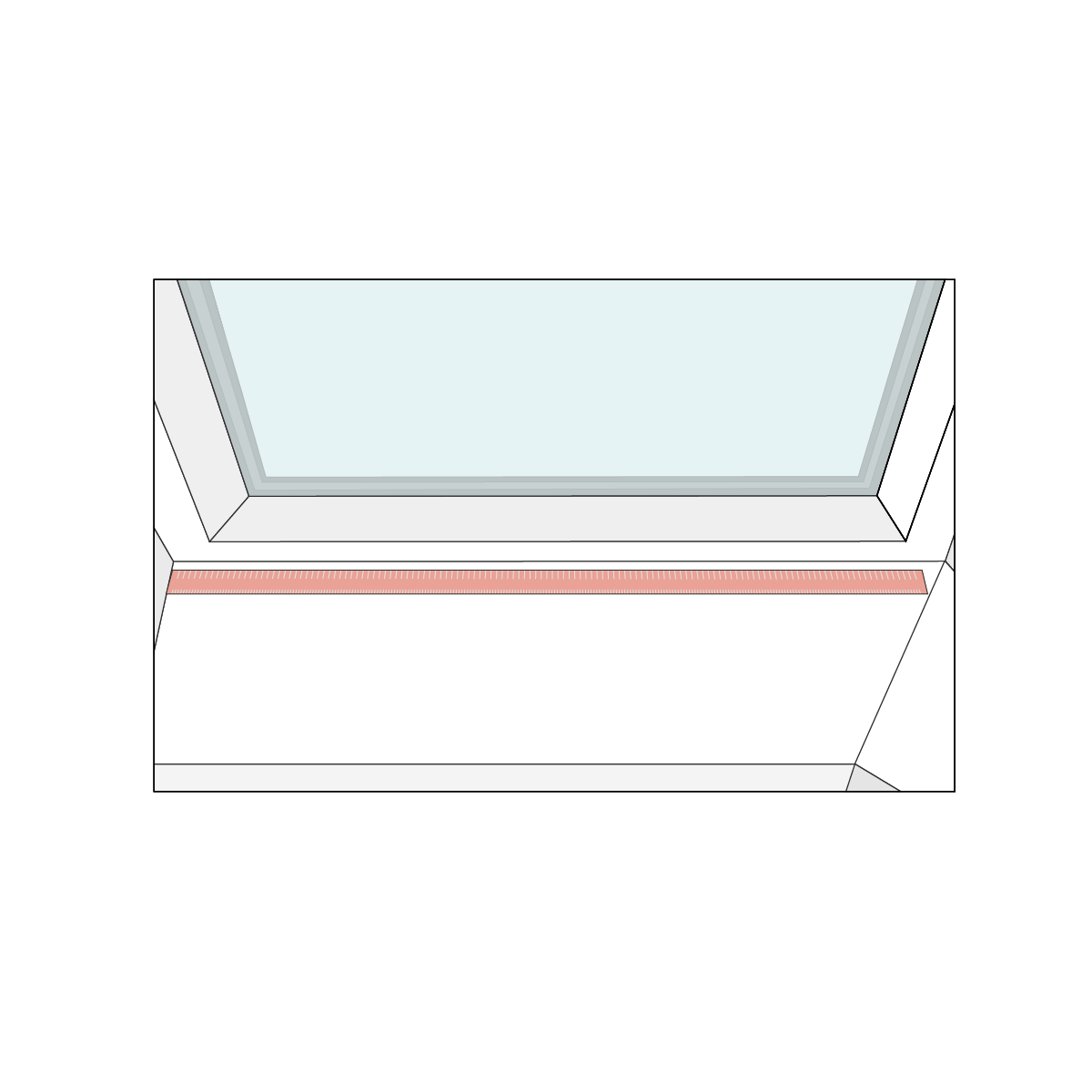

Lay your measuring sheets flat on your window sill and move them together until your two total depth marks touch. Mark this point.

Important Note


Make sure you press your measuring card against the frame where you see the arrow and using a pencil, mark on your window sill where your cards meet the window frame.

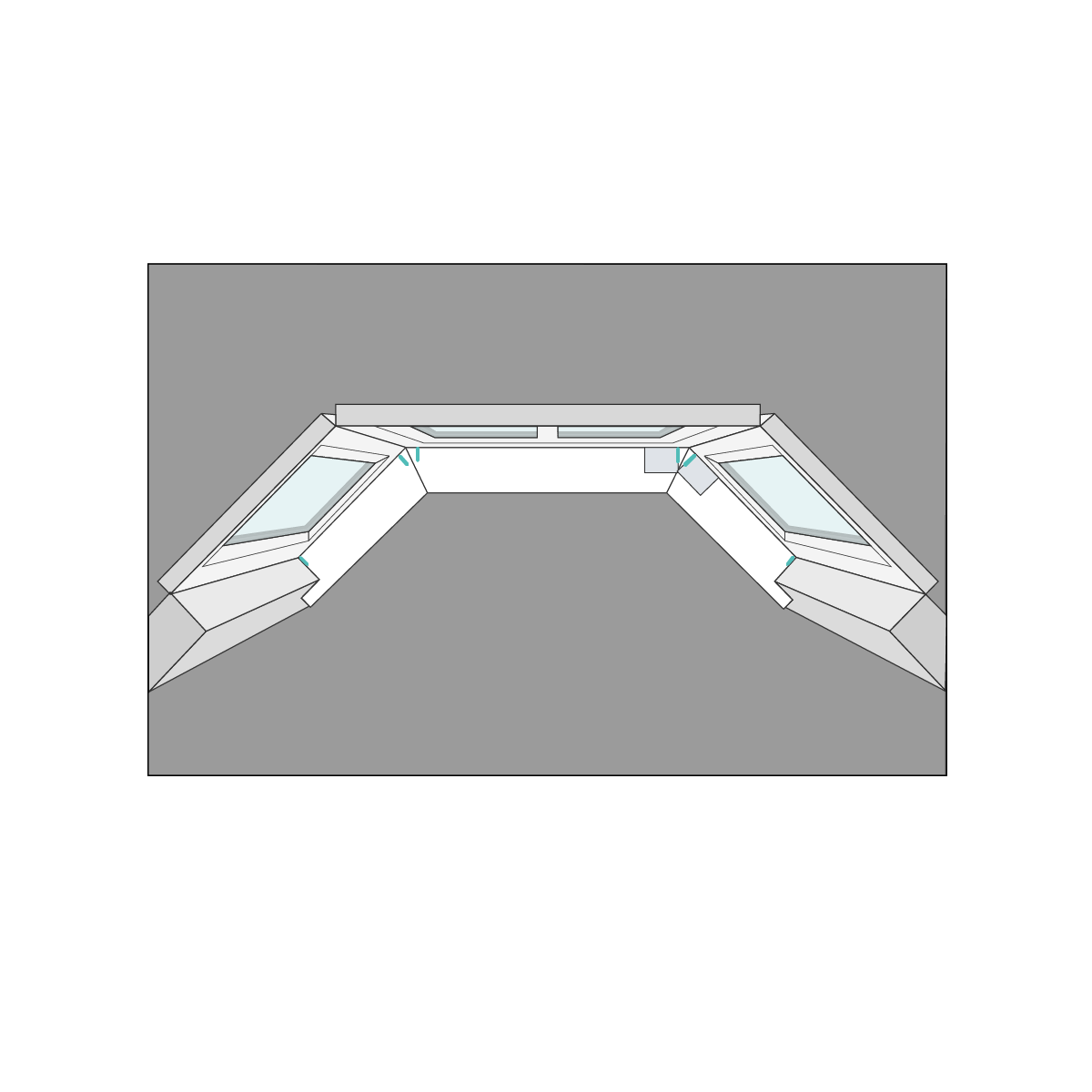

Step 5

Marking remaining Measurement Points

Grab your pencil again and mark on the window sill the point where the lines meet. Repeat this step on each intersection of your bay window.

Important Note

End Points

Where your blinds end at either side of your bay window is a matter of personal preference, or will be determined by any obstructions. Measure from the mark on your window frame to where you would like the side blind to finish.

Important Note

One Measurement Per Blind

For example if your bay window has five window panes, you will make five width measurements and will order five individual blinds.

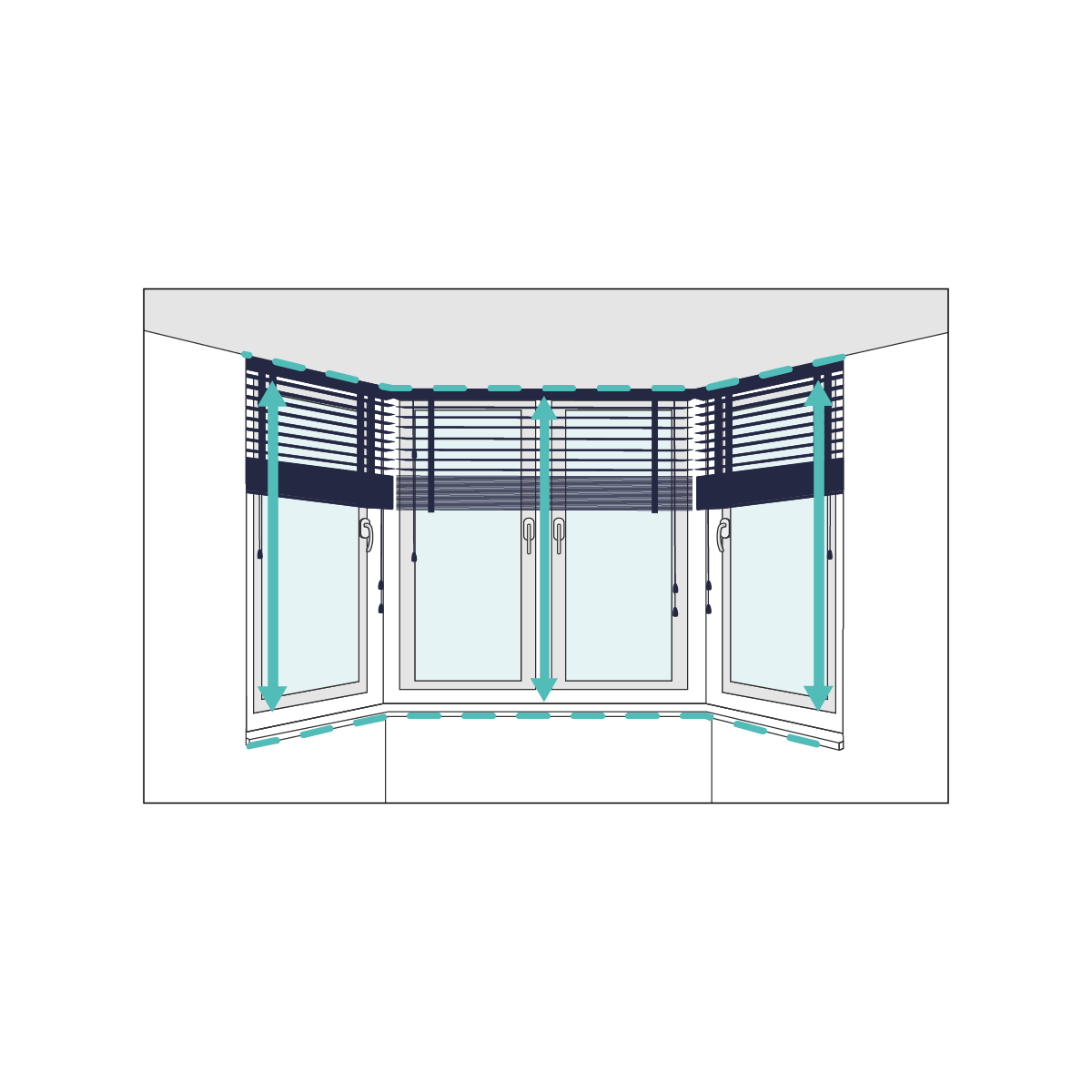

Step 6

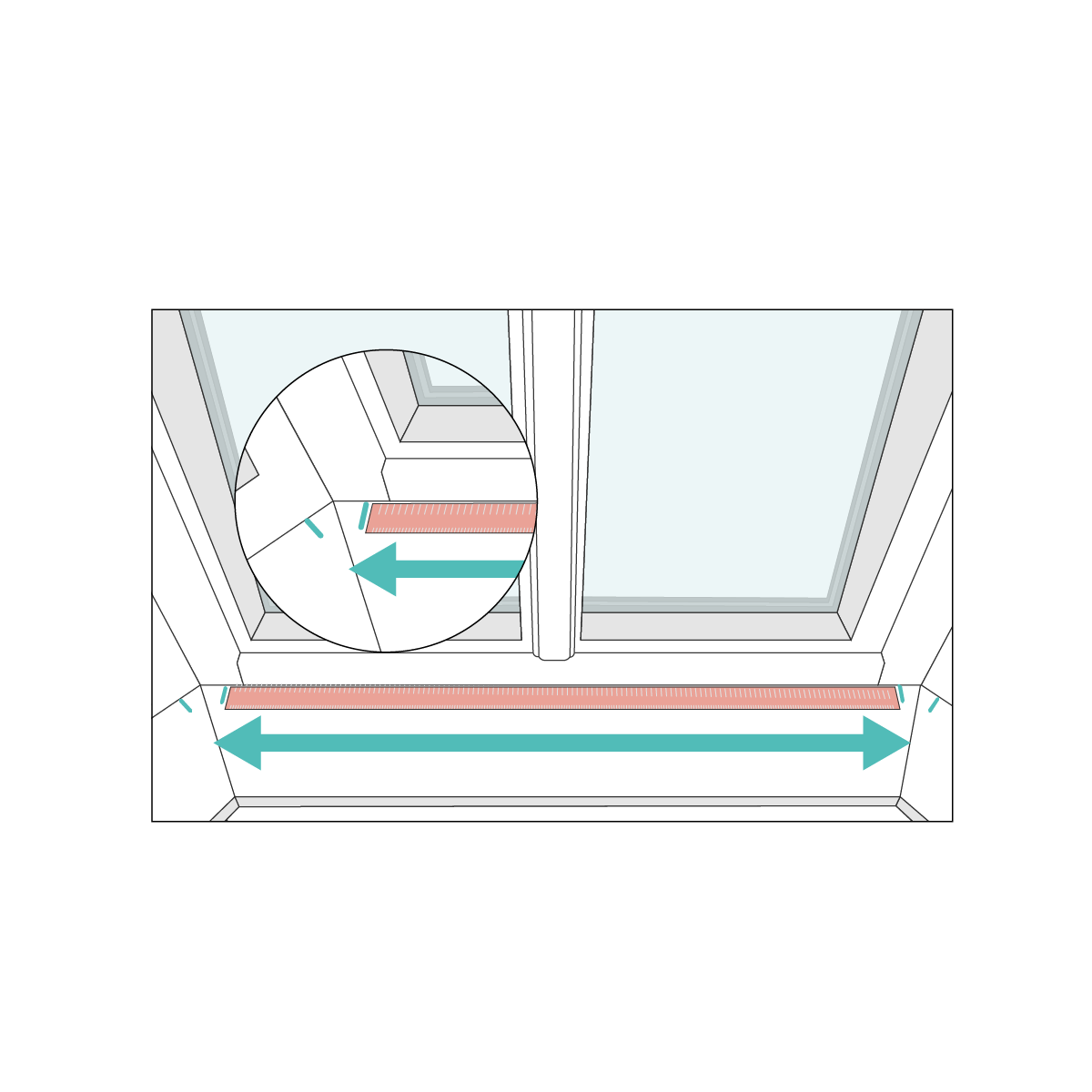

Measure the Width

Measure the distance between your marked measurement points to get your blind width measurements.

Step 7

Measure the Drop

Measure the drop of your bay window in three places, use the smallest measurement as your drop.

Step 8

Final Step

Enter your width and drop measurements for each blind. Order each blind as Recess Size. Repeat this process for each blind you need to cover your angled bay window.

We will make a small deduction to the width of your blind when you select the Recess size option to accommodate the brackets.
