How to Install Skylight Roof Blinds

See our useful fitting instructions for tips how to install our luxury skylight roof blinds with ease. If you need any assistance along the way please give us a call or start a live chat with our highly trained customer support team. You will need to provide your own screws as the type required varies greatly depending upon the surfaces you are fixing to. You will need 4mm diameter screws, suitable for the material you are installing into.

What You'll Need

To install your new blinds you will need the below tools.

Metal Tape Measure
Metal Tape Measure
2mm Allen Key
2mm Allen Key

Fitting Instructions

Once you have your tools to hand, follow our step by step guide to install your skylight roof blinds.

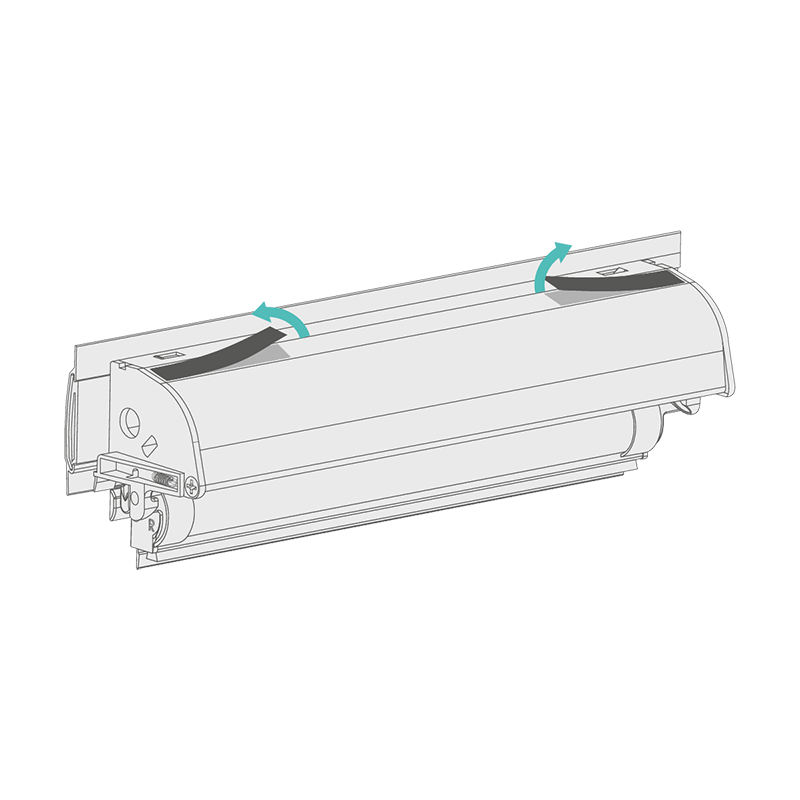

Step 1

Preparing the Headbox

Peel the backing from the red double sided tape on the headbox.

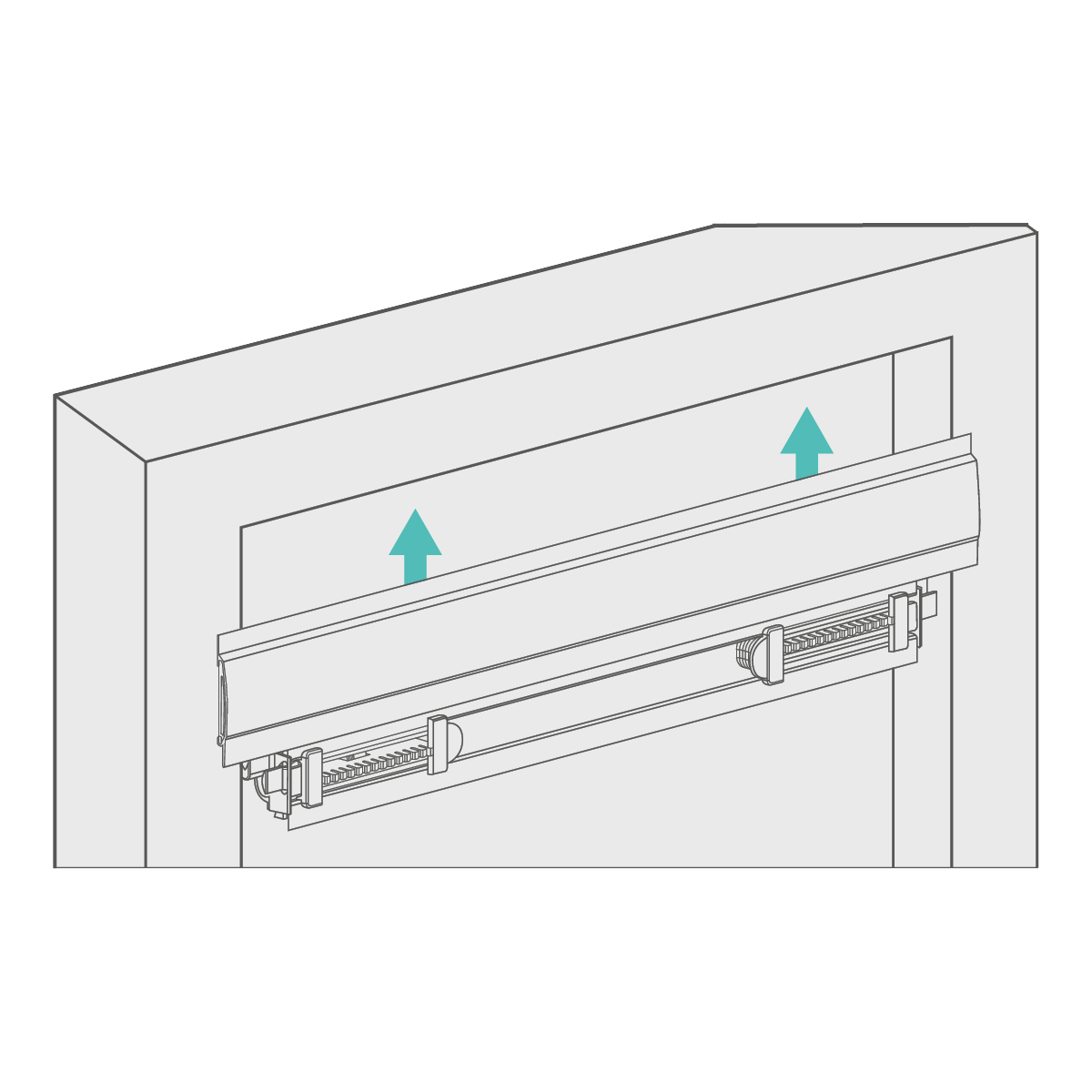

Step 2

Attaching the Headbox

Secure headbox to top of window using double sided tape

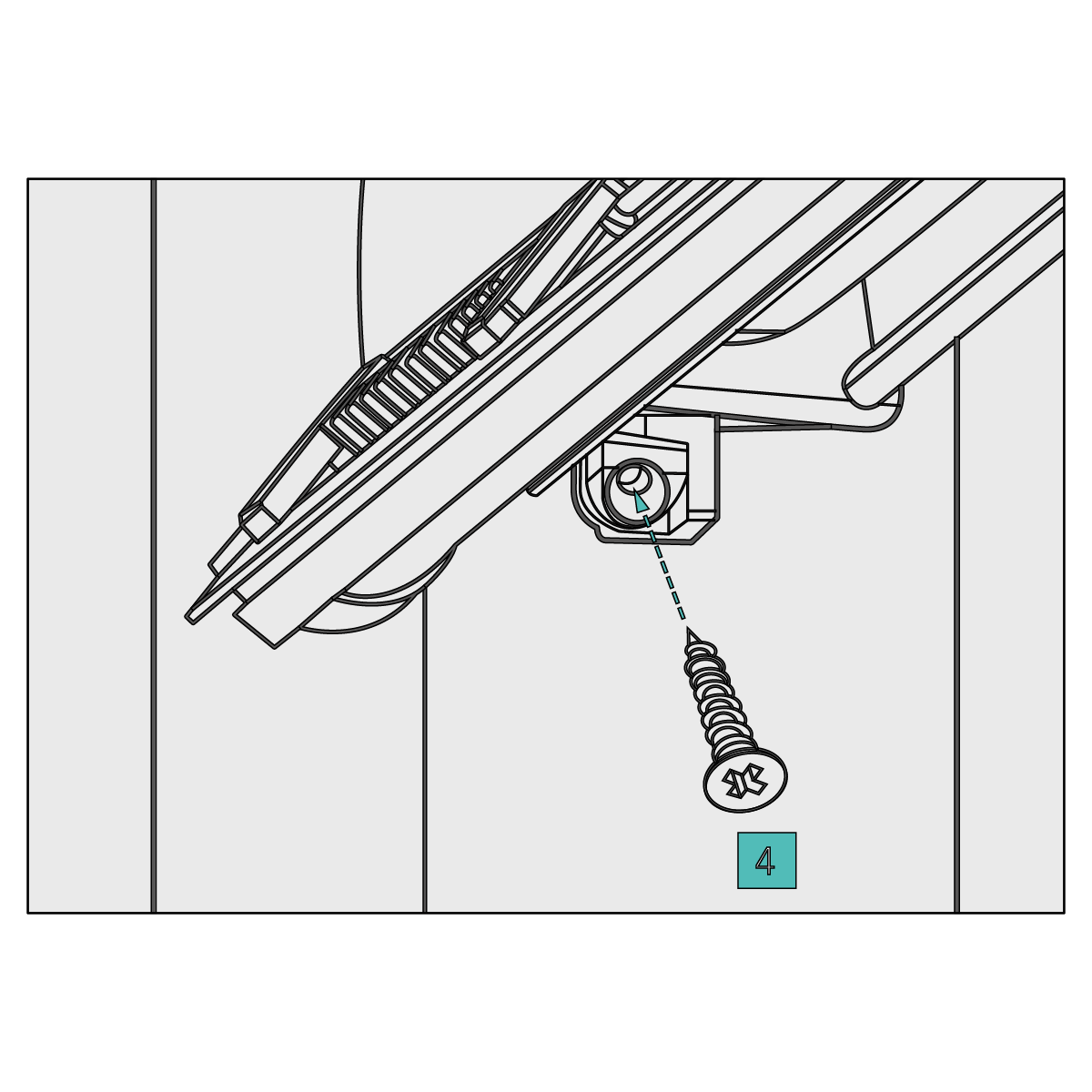

Step 3

Securing the Headbox

Secure headbox to window frame at each side using countersunk screws

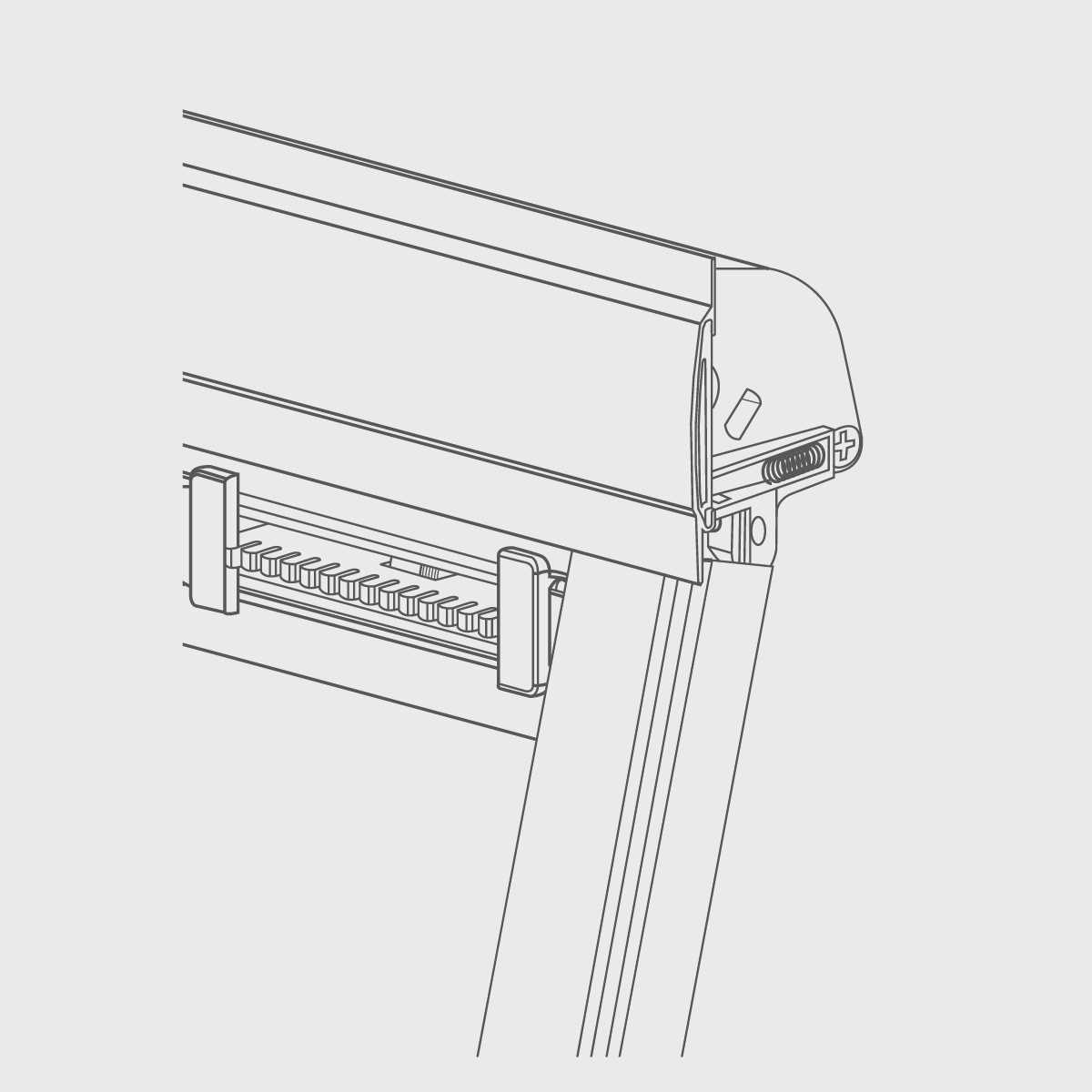

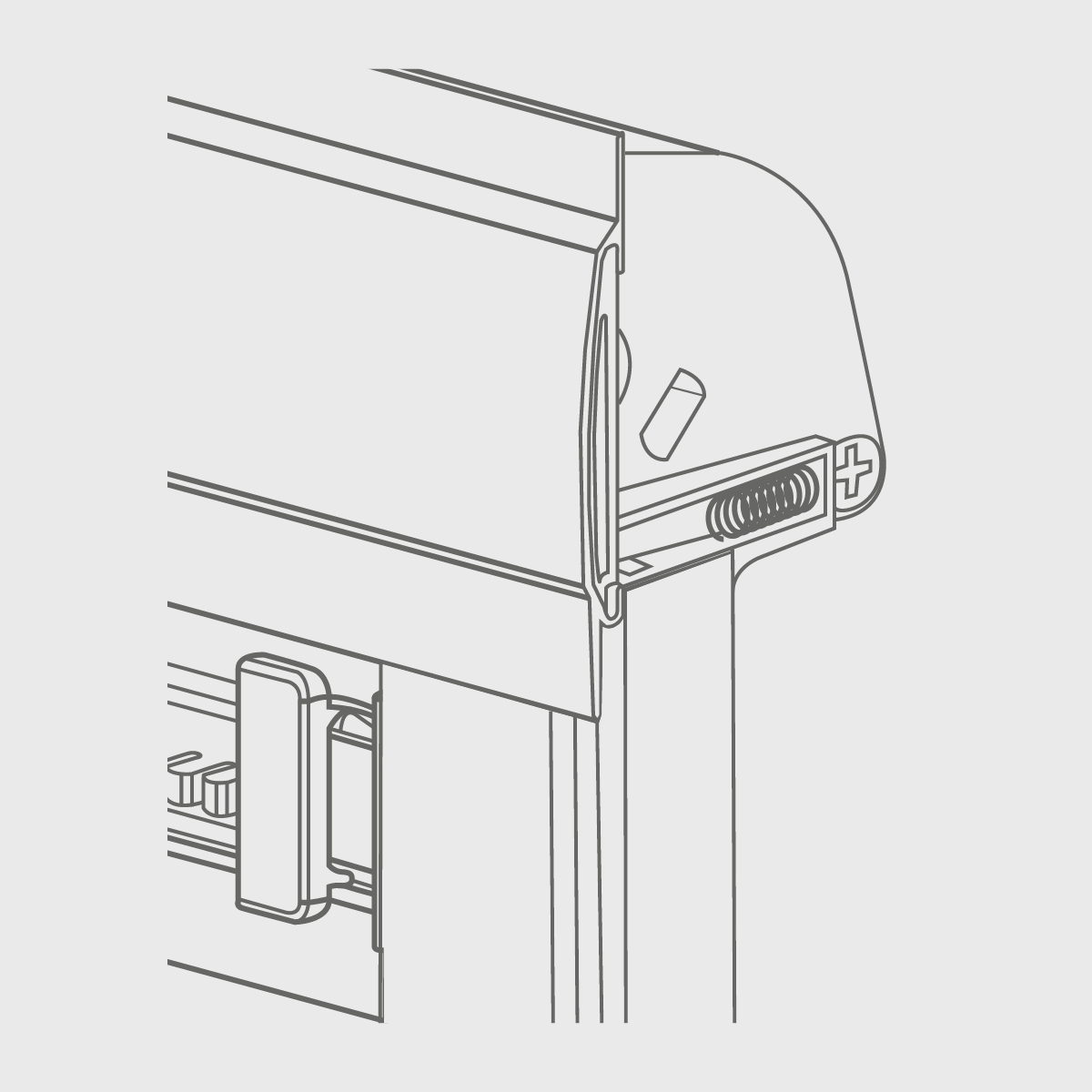

Step 4

Inserting the Side Channel

Slide the right side channel at a 30o angle onto the bottom bar end cap to ensure position under the headbox lip.



Push the lower end of the side channel into position against the edge of the window.

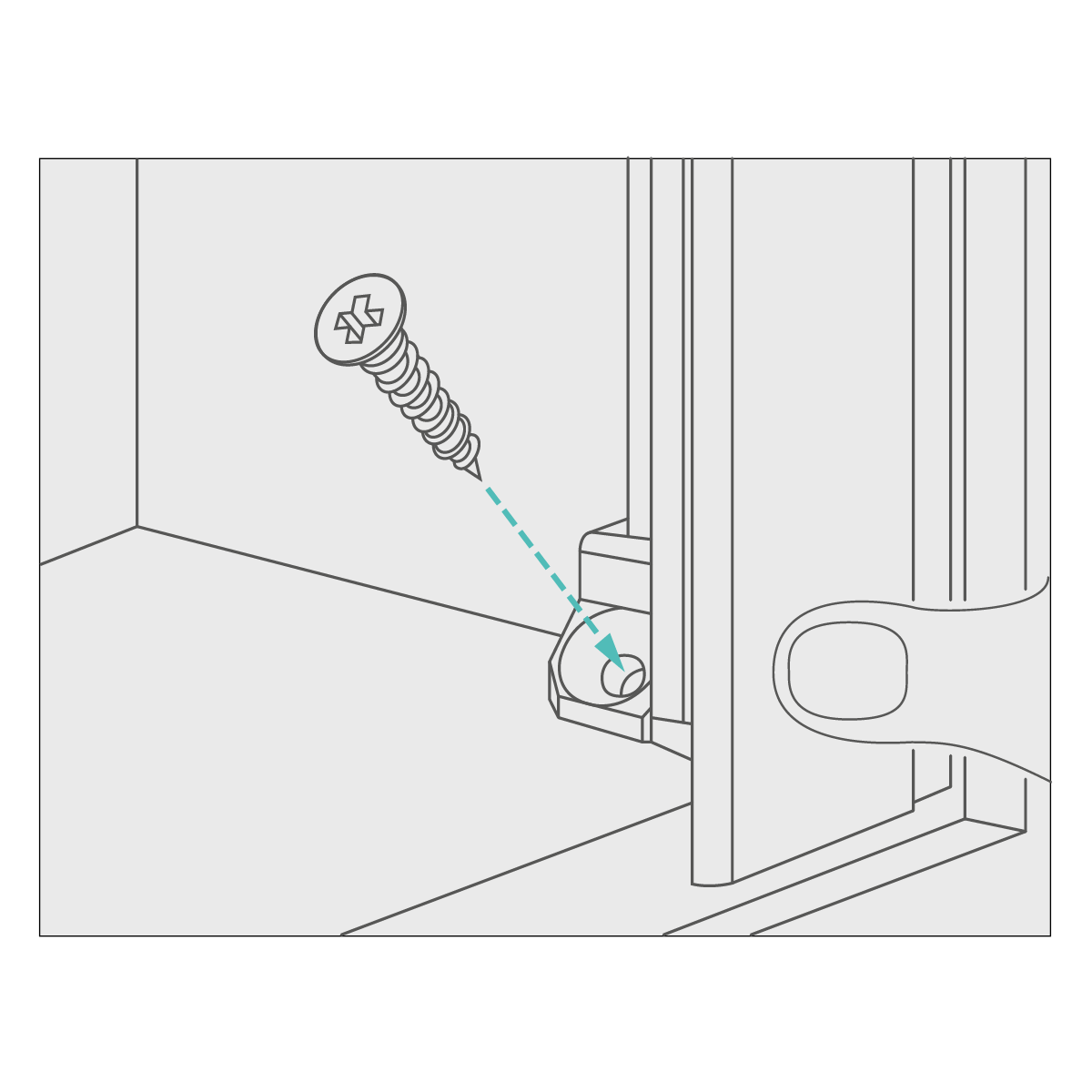

Step 5

Securing the Side Channel

Secure the side channel into position using the countersunk screws provided.

Repeat steps 4 & 5 for the left side channel.

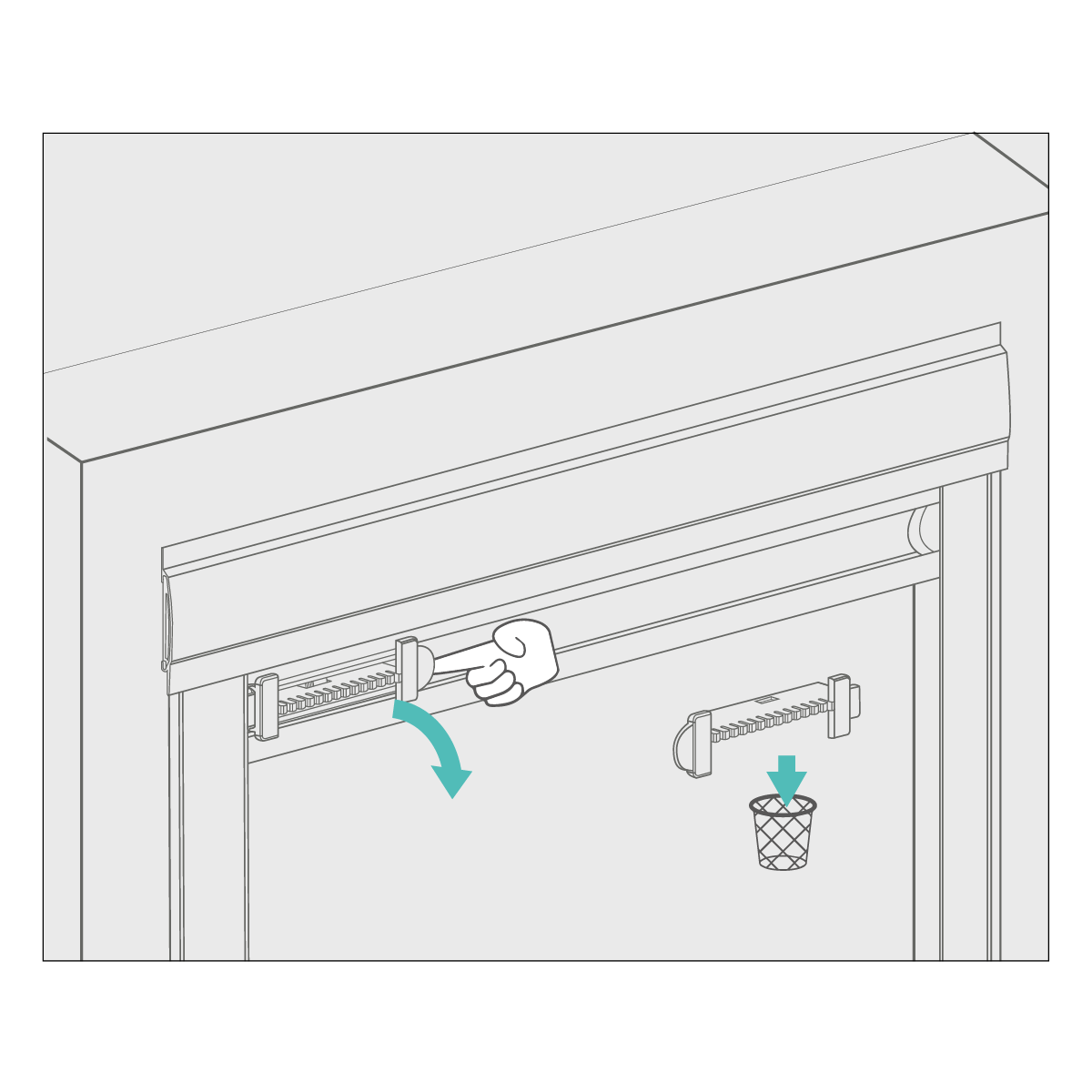

Step 6

Remove the Cord Containers

Remove the red cord containers, unwind the cord and dispose of the cord retainers.

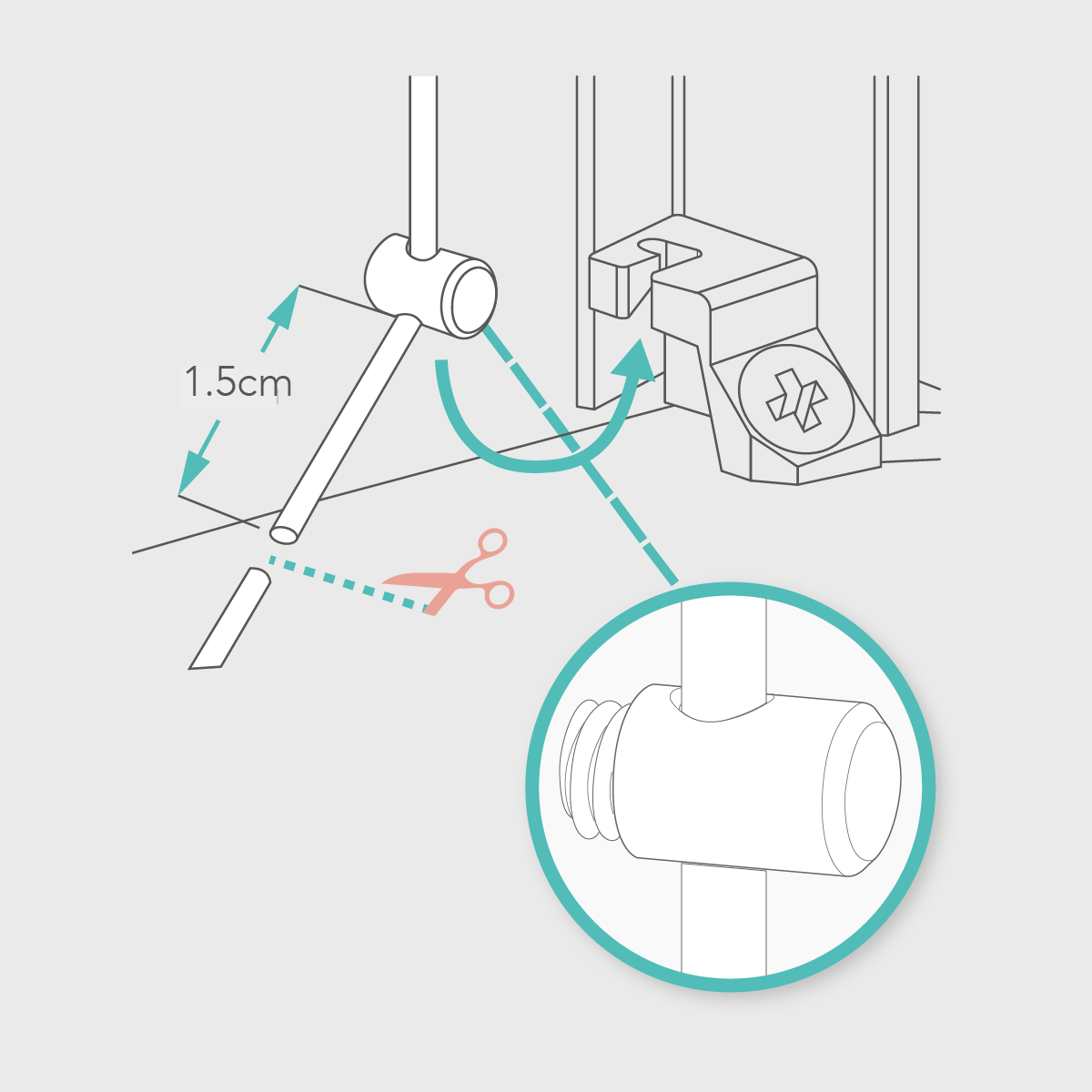

Step 7

Visual Checks

Pull cord to bottom of side channel and secure cord stop in the locking mechanism & trim excess cord to 1.5cm once it is confirmed the blind is working correctly.

Additional Information

Adjusting the Tension

The blind is supplied pre-tensioned however, should this need adjusted, please change as follows:

  1. Use the 2mm allen key supplied to adjust the cord stops.
  2. If the blind does not stay in position or raise on its own accord, add tension to the cords by adjusting the cord stop.
  3. If the blind is difficult to open or close, adjust the position of the cord stop by reducing the tension ensuring the bottom bar is level.

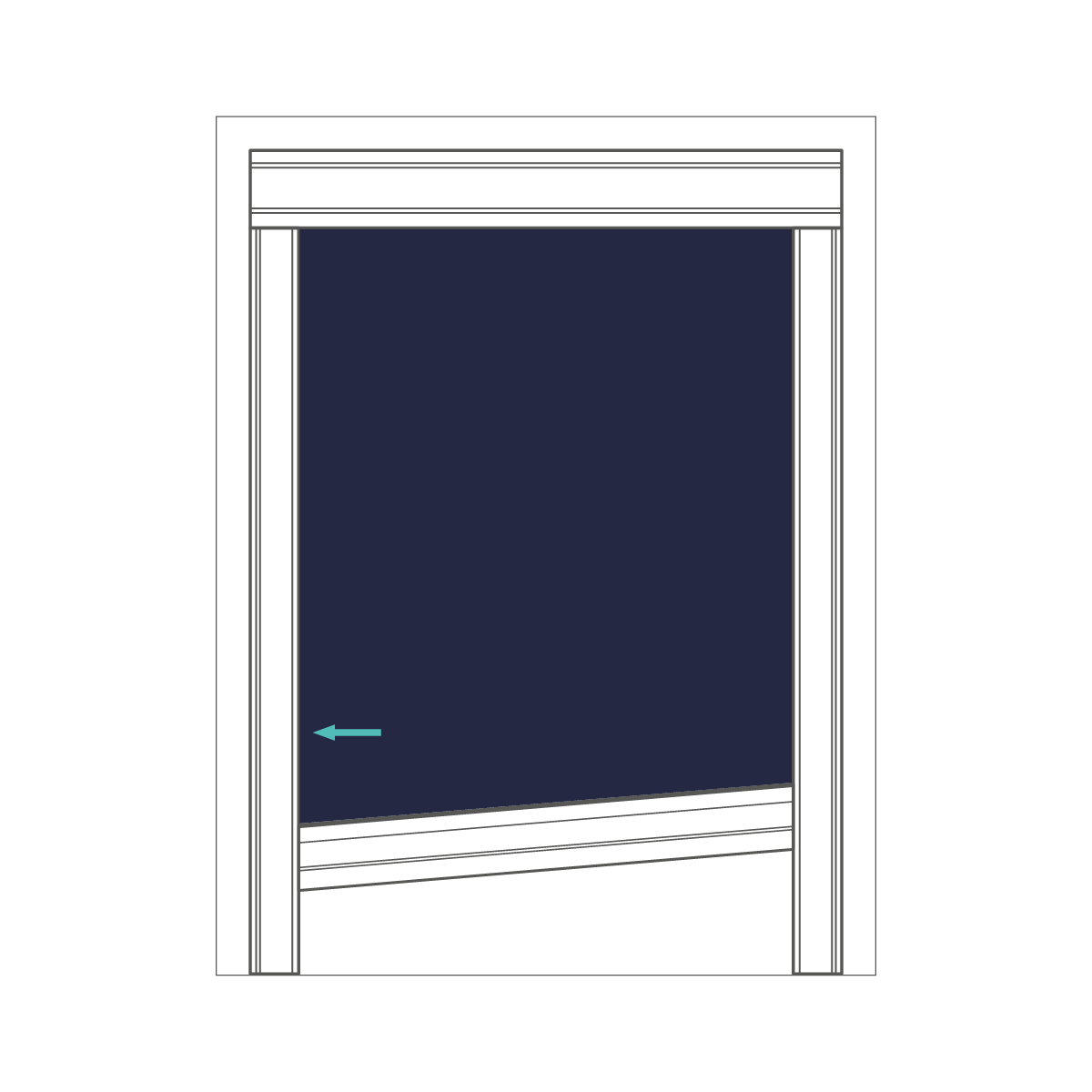

  4. If the bottom bar is not level adjust the cord stop tension. To do this, remove it from locking mechanism and adjust accordingly
